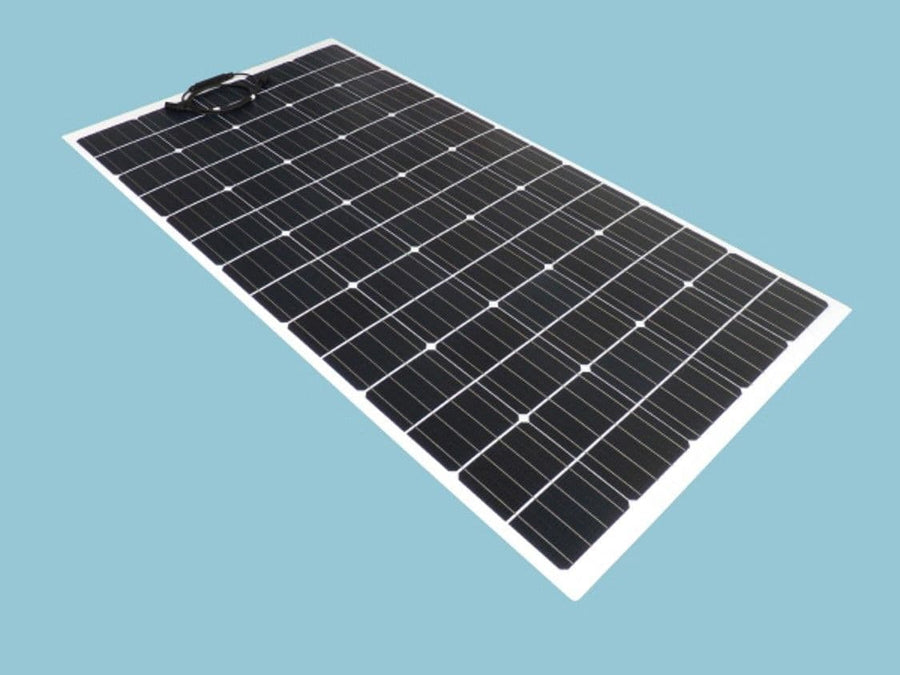

160W Flex Solar Panel, Cable & Cover
£412.99
inc. VAT
Out of stock — contact us for lead time
Supplied through our authorised trade partner. Prices shown include VAT.
Unsure this part fits your van? Ask us first.
Description
- With this 160W solar panel you could expect to generate around 53 amps per day during the summer months supplementing the 12V leisure battery power in boats etc.
- SPECS
- Maximum Power (Pmax): 160W
- Maximum Power Current (Ipm): 8.89A
- Maximum Power Voltage (Vpm): 18V
- Short Circuit Current (Isc): 9.6A
- Open Circuit Voltage (Voc): 21.6V
- Norminal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC600V
- Size: 1330 x 665 x 4mm
- Weight: 4.7kg
- FEATURES
- 3° flexibility or 3cm per 1m of panel length
- ETFE rough scratch resistant surface which can be walked on in deck shoes.
- Highly efficient monocrystalline cells
- Can be conveniently placed on curved solid surfaces
- Can be easily bonded using Fixing Adhesive (no need for drilling)
- 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
- IN THE KIT
- 1 x Solar Panel 160W 12V Monocrystalline
- 2 x 6m 4mm Single Core Cable
- 1 x Waterproof Cable Entry Cover
- MCA Connectors
- *** CHARGE CONTROLLER SOLD SEPARATELY (20AMP NEEDED FOR 160W) ***
