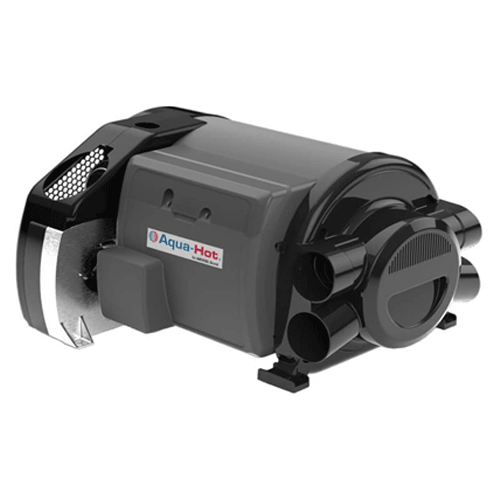

Aqua Hot Gen1 P6E Lpg Combi Heater
£1,610.00
inc. VAT
Out of stock — contact us for lead time
Supplied through our authorised trade partner. Prices shown include VAT.
Unsure this part fits your van? Ask us first.
Description
- AQUA HOT GEN1 P6E LPG COMBI HEATER
- THE AQUA-HOT GEN 1 D4 E IS A COMPACT FORCED AIR HEATING SYSTEM WITH 10L WATER HEATER IN AN ALL-IN-ONE UNIT, FUELED BY PROPANE/BUTANGE (LPG) PLUS ELECTRIC MODE, SPECIFICALLY DESIGNED FOR RV VEHICLES.
- DOWNLOAD AQUA-HOT GEN1_COMPARISON_D
- DOWNLOAD AQUA HOT GEN QUICK REFERENCE GUIDE.zip
- THIS PRODUCT CAN HEAT THE WATER INDEPENDENTLY OF THE FURNACE, ALLOWING YOU TO BE COMFORTABLE ALL YEAR ROUND AND ALWAYS BE READY TO HAVE A HOT SHOWER.
- THE ELECTRIC MODE GIVES YOU THE POSSIBILITY TO SAVE FUEL WHILE YOU ARE CONNECTED TO THE 230V SHORE POWER.
- ACCESSORY KIT (INCLUDED) CONTENTS - LCD CONTROL PANEL + CONNECTION CABLE (5.7M), 12V SUPPLY CABLE (4M),
- TEMPERATURE SENSOR + CONNECTION CABLE (4M), 1MTR AIR INTAKE PIPE, 0.95M EXHAUST PIPE,
- GAS PIPING 2.5M), CONNECTORS AND FITTINGS.
- INTAKE/EXHAUST OUTLET PORT, SEALING GASKET, MOUNTING CLIP AND FASTENERS (WALL CHIMNEY KIT)
- 8M AIR DUCTING TUBE 65 MM + MOUNTING BRACKETS
- AIR DUCTING VENT COVER 60 MM + MOUNTING BRACKETS 4 PCS
- GEN 1 SPECIFICATIONS
- OPEN SOURCE: RV-C READY
- FUEL TYPE : LPG (PROPANE/BUTANE)
- POWER SUPPLY : 12V DC 230V AC
- OPERATING PRESSURE : 30 MBAR
- Heat Output : 2.000 W / 4.000 W / 6.000 W
- Electric Mode Output : 900 W / 1.800 W
- Efficiency : 98%
- Fuel Consumption : 160 480 g/h
- Water Tank Capacity : 10 litre
- Current Draw (12 V) : Max 5.6 A for a short term (ave.1.3 A)
- Current Draw (230 V) : 3.9 7.8 A
- Dimensions (W x H x D) : 510 x 300 x 450 mm
- Weight : 15.6 Kg
- Warm Air Flow Rate : Max 287 m3/h
- Water Pump Pressure : Max 2.8 bar
- System Pressure : Max 4.5 bar
- Hot Water Options : 40C - 60C
- High Altitude Ready : up to 5.000 m
- Lower Point Drain : Included
- No Anode Design : Included
- Automated Timer : Included
