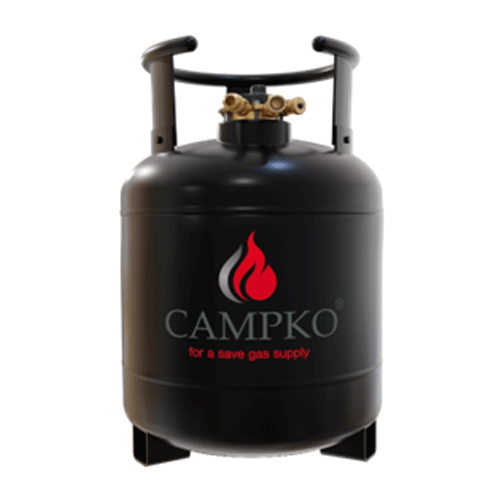

Campko Refillable Gas Bottle 22 Litres
£220.00
inc. VAT
Out of stock — contact us for lead time
Supplied through our authorised trade partner. Prices shown include VAT.
Unsure this part fits your van? Ask us first.
Description
- THE CAMPKO REFILLABLE GAS BOTTLE MADE OF SOLID STEEL WAS DEVELOPED FOR PERMANENT INSTALLATION IN MOTORHOMES, CAMPER VANS OR CARAVANS. IT HAS A HIGH SAFETY STANDARD AND IS CERTIFIED IN ACCORDANCE WITH ECE 67R-01. THE CAMPKO REFILLABLE GAS CYLINDER IS INSTALLED IN THE GAS LOCKER AND THUS SERVES AS A REFILLABLE CAMPER PROPANE TANK. THANKS TO ITS ECE 67R-01 HOMOLOGATION, IT IS NOT SUBJECT TO A 10-YEAR TV TEST PERIOD.
- IT CAN BE INSTALLED INDIVIDUALLY OR AS A MULTI-BOTTLE SYSTEM.
- THE CYLINDER COLLAR IS REMOVABLE, BUT IN MOST CASES THE OPEN DESIGN OF THE CYLINDER COLLAR OFFERS ENOUGH SPACE TO FIT A GAS REGULATOR OR A GAS FILTER DIRECTLY TO THE REFILLABLE GAS CYLINDER.
- THE CAMPKO REFILLABLE GAS BOTTLE IS EQUIPPED WITH A MULTIVALVE WITH 80% FILLING STOP AND OVERPRESSURE SAFETY VALVE. IT IS AVAILABLE IN SIZES 15L - 36L.
- TECHNICAL DATA
- MATERIAL
- Steel
- SERVICE LIFE
- Unlimited
- 80% FILLING STOP
- included
- SAFETY VALVE
- 27 bar pressure relief valve
- EMPTY WEIGHT
- 14.00 kg
- FILLING & REMOVAL
- separate
- FULL LEVEL INDICATOR
- available
- REMOTE DISPLAY
- possible
- INLET
- 3/4"-16UNF external thread
- OUTLET
- G.12 = W21.8 x 1/14 LH (with seal)
- Volume (gross)
- 22.00 litres
- Volume (net)
- 17.60 litres
- Total height
- 485 mm
- Height without collar
- 470 mm
- Diameter
- 300 mm
- Homologation
- ECE 67R-01
