Sargent

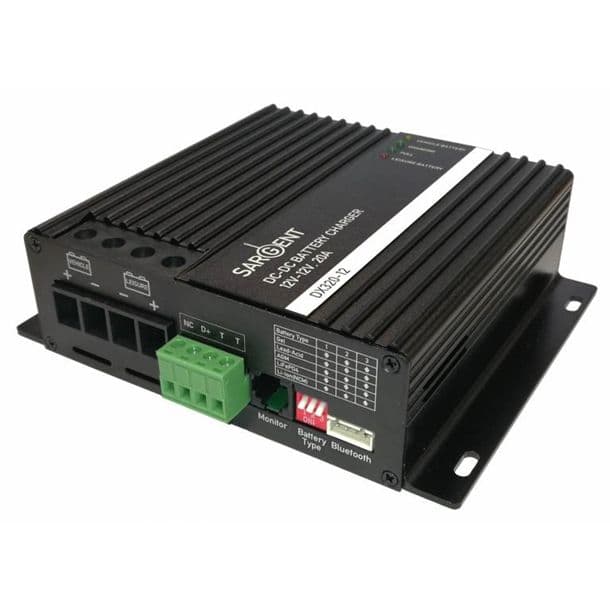

DX320 12V 20A DC-DC Battery Charger
£262.99
inc. VAT
✓ In stock
Supplied through our authorised trade partner. Prices shown include VAT.
Unsure this part fits your van? Ask us first.
Description
- This battery charger is ideal for van conversions when using a base vehicle which has a Euro 6 engine (smart-alternator) to charge the leisure battery.
- With the 20amp charger using the 3 stage charging profile, the leisure battery is charged with high efficiency and avoids the vehicle battery from becoming over-discharged.
- The unit is compatible with Gel, Lead Acid, AGM, LiFePO4 & Lithium Ion leisure batteries, it is recommended to check with your manufacturer before installing the charger.
- Our charger also has an intelligent cooling system to prevent overheating.
- Designed by Sargent to be easily installed alongside their Power Control Systems, such as EC155
- Power - 260W
- Input voltage range - 10.5 - 15.4V
- Output voltage range - 8 - 16V
- Output current - 20A (max)
- Standby current - 17mA (max)
- Efficiency @12V - 94%
- Engine run (D+) input - Yes
- Dimensions (LxWxH) - 147 x 118 x 41mm
- Weight - 460g
- Download the datasheet HERE
- Download Installation & User Instructions HERE
